STW25N80K5 N-channel Power MOSFET

STW25N80K5 Description

STB25N80K5, STF25N80K5, STP25N80K5, STW25N80K5 N-channel 800 V, 0.19 Ω typ., 19.5 A MDmesh™ K5 Power MOSFETs in D2PAK, TO-220FP, TO-220 and TO-247 pac.
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STW25N80K5 Features

* Order code VDS @ TJmax RDS(on) max ID PTOT STB25N80K5 250 W STF25N80K5 STP25N80K5 STW25N80K5 800 V < 0.260 Ω 19.5 A 40 W 250 W
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM
* Ultra low gate charge
* 100% avalanche tested

STW25N80K5 Applications

* Switching applications

📥 Download Datasheet

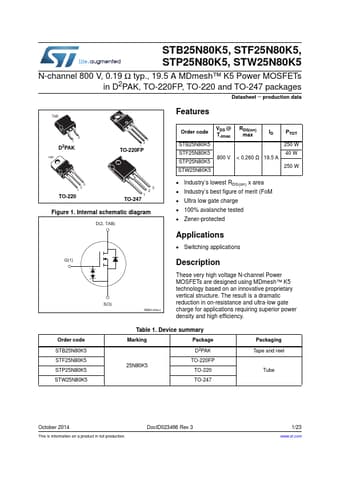

Preview of STW25N80K5 PDF
