STW25NM60N

N-CHANNEL Power MOSFET

STW25NM60N Features

* Type VDSS (@Tjmax) RDS(on) max ID STB25NM60N STB25NM60N-1 STF25NM60N STP25NM60N STW25NM60N 650 V 650 V 650 V 650 V 650 V < 0.160 Ω < 0.160 Ω < 0.160 Ω < 0.160 Ω < 0.160 Ω 21 A 21 A 21 A(1) 21 A 21 A 1. Limited only by maximum temperature allowed

* 100% avalanche tested

* Low input

STW25NM60N General Description

This series of devices is realized with the second generation of MDmesh™ technology. This revolutionary MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high effi.

STW25NM60N Datasheet (555.71 KB)

Preview of STW25NM60N PDF

Datasheet Details

Part number:

STW25NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

555.71 KB

Description:

N-channel power mosfet.

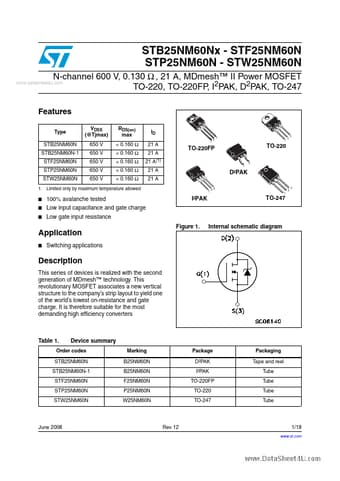

STB25NM60Nx - STF25NM60N STP25NM60N - STW25NM60N N-channel 600 V, 0.130 Ω , 21 A, MDmesh™ II Power MOSFET www.datasheet4u.com TO-220, TO-220FP, I2P.
