STW29NK50Z Datasheet, Mosfet, ST Microelectronics

STW29NK50Z Features

  • Mosfet TYPE STW29NK50Z I I I I I I Figure 1: Package ID 31 A PW 350 W VDSS 500 V RDS(on) < 0.13 Ω TYPICAL RDS(on) = 0.105 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARG

PDF File Details

Part number:

STW29NK50Z

Manufacturer:

STMicroelectronics ↗

File Size:

559.37kb

Download:

📄 Datasheet

Description:

N-channel supermesh mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established Figure 2: Internal Schematic Diagram strip

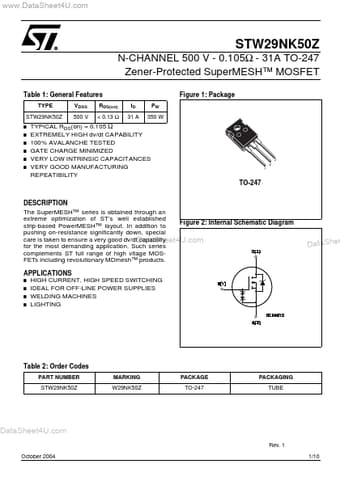

Datasheet Preview: STW29NK50Z 📥 Download PDF (559.37kb)
Page 2 of STW29NK50Z Page 3 of STW29NK50Z

STW29NK50Z Application

  • Applications HIGH CURRENT, HIGH SPEED SWITCHING I IDEAL FOR OFF-LINE POWER SUPPLIES I WELDING MACHINES I LIGHTING I DataShee Table 2: Order Codes

TAGS

STW29NK50Z
N-CHANNEL
SuperMESH
MOSFET
ST Microelectronics
