STW29NK50ZD N-Channel MOSFET

ST Microelectronics

Description

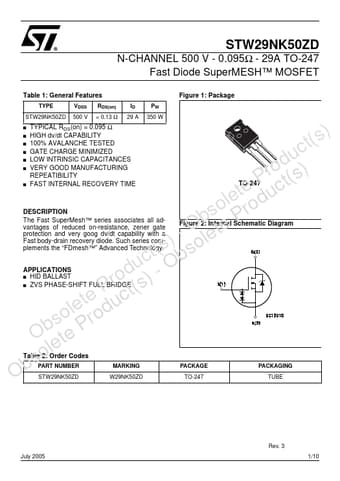

STW29NK50ZD N-CHANNEL 500 V - 0.095Ω - 29A TO-247 Fast Diode SuperMESH™ MOSFET Table 1: General .
b P The Fast SuperMesh™ series associates all ad- vantages of reduced on-resistance, zener gate - O te protection and very goog dv/dt capability with.

📥 Download Datasheet

STW29NK50ZD Datasheet Preview — Preview of STW29NK50ZD PDF

Datasheet Specifications

Part number: STW29NK50ZD
Manufacturer: STMicroelectronics ↗
File Size: 273.66 KB
Datasheet: STW29NK50ZD_STMicroelectronics.pdf
Description: N-Channel MOSFET

Features

* Figure 1: Package TYPE VDSS RDS(on) ID PW STW29NK50ZD 500 V < 0.13 Ω 29 A 350 W
* TYPICAL RDS(on) = 0.095 Ω )
* HIGH dv/dt CAPABILITY t(s
* 100% AVALANCHE TESTED c
* GATE CHARGE MINIMIZED u
* LOW INTRINSIC CAPACITANCES d
* VERY GOOD MANUFACTURING ro ) REPEATIBILITY P t

Applications

* d -
* HID BALLAST ro )
* ZVS PHASE-SHIFT FULL BRIDGE OoblestoelePteroPduct(s Table 2: Order Codes sPART NUMBER Ob STW29NK50ZD MARKING W29NK50ZD PACKAGE TO-247 PACKAGING TUBE July 2005 Rev. 3 1/10 STW29NK50ZD Table 3: Absolute Maximum ratings Symbol Parameter Value Unit VDS Drai
