STW5NK100Z Datasheet - ST Microelectronics

N-CHANNEL MOSFET

STW5NK100Z Features

* Type STF5NK100Z STP5NK100Z STW5NK100Z VDSS (@TJMAX) RDS(on)max 1000 V < 3.7 Ω 1000 V < 3.7 Ω 1000 V < 3.7 Ω ID 3.5 A 3.5 A 3.5 A

* Extremely high dv/dt capability

* 100% avalanche tested

* Gate charge minimized

* Very low intrinsic capacitances

* Very good manufacturin

STW5NK100Z General Description

The new SuperMESH™ series of Power MOSFETS is the result of further design improvements on ST's well-established stripbased PowerMESH™ layout. In addition to significantly lower on-resistance, the device offers superior dv/dt capability to ensure optimal performance even in the most demanding applic.

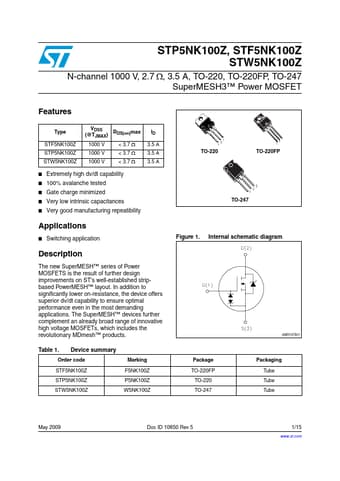

STW5NK100Z Datasheet (453.79 KB)

STW5NK100Z Datasheet Preview — Preview of STW5NK100Z PDF

Datasheet Details

Part number:

STW5NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

453.79 KB

Description:

N-channel mosfet.
