STW5NA90FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

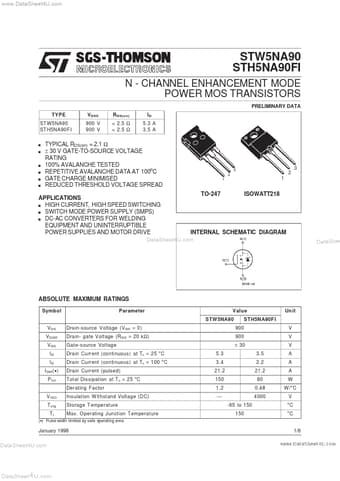

www.DataSheet4U.com STW5NA90 STH5NA90FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS PRELIMINARY DATA TYPE ST W5NA90 ST H5NA90F I s s V DSS 900 V 900 V R DS(on) < 2.5 Ω < 2.5 Ω ID 5.3 A 3.5 A s s s s TYPICAL RDS(on) = 2.1 Ω ± 30 V GATE-TO-SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC GATE CHARGE MINIMISED REDUCED THRESHOLD VOLTAGE SPREAD 3 2 1 3 2 1 TO-247 ISOWATT218 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS.

STW5NA90_STMicroelectronics.pdf

STW5NA90FI Datasheet Preview — This datasheet PDF includes multiple part numbers: STW5NA90FI, STW5NA90. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STW5NA90FI, STW5NA90

Manufacturer:

STMicroelectronics ↗

File Size:

231.48 KB

Description:

N - channel enhancement mode power mos transistors.

Note:

This datasheet PDF includes multiple part numbers: STW5NA90FI, STW5NA90.
Please refer to the document for exact specifications by model.
