STW5NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

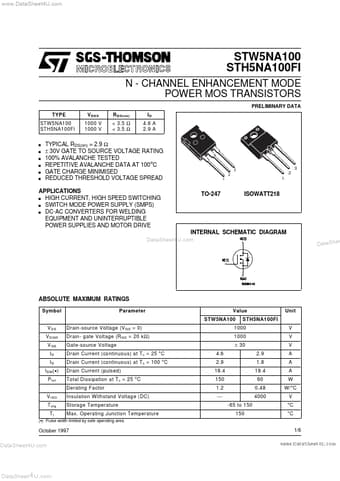

www.DataSheet4U.com STW5NA100 STH5NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STW5NA100 STH5NA100FI s s s s s s V DSS 1000 V 1000 V R DS(on) < 3.5 Ω < 3.5 Ω ID 4.6 A 2.9 A TYPICAL RDS(on) = 2.9 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100 oC GATE CHARGE MINIMISED REDUCED THRESHOLD VOLTAGE SPREAD TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC C.

STW5NA100_STMicroelectronics.pdf

STW5NA100FI Datasheet Preview — This datasheet PDF includes multiple part numbers: STW5NA100FI, STW5NA100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STW5NA100FI, STW5NA100

Manufacturer:

STMicroelectronics ↗

File Size:

249.42 KB

Description:

N - channel enhancement mode power mos transistors.

Note:

This datasheet PDF includes multiple part numbers: STW5NA100FI, STW5NA100.
Please refer to the document for exact specifications by model.
