GD10FSX65L4S - IGBT

STARPOWER

📥 Download Datasheet

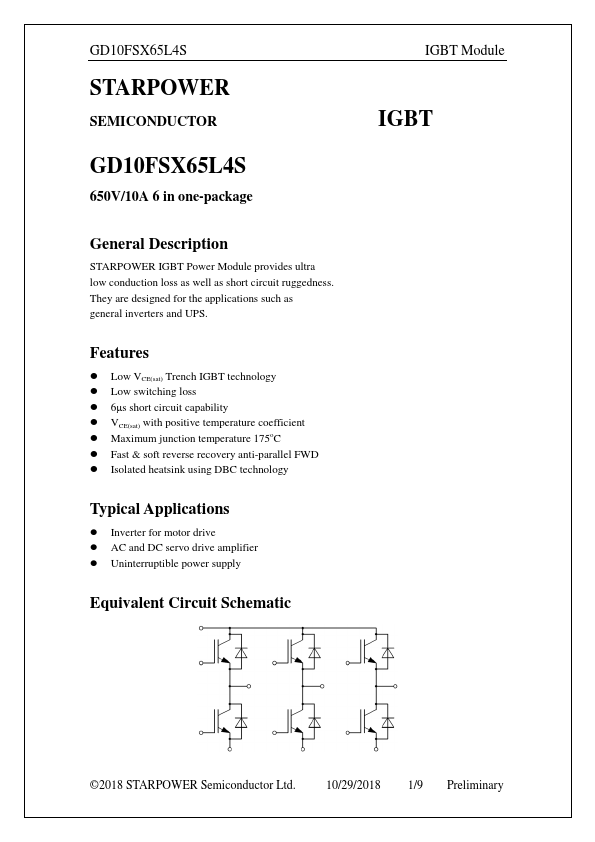

GD10FSX65L4S Datasheet Preview — Preview of GD10FSX65L4S PDF

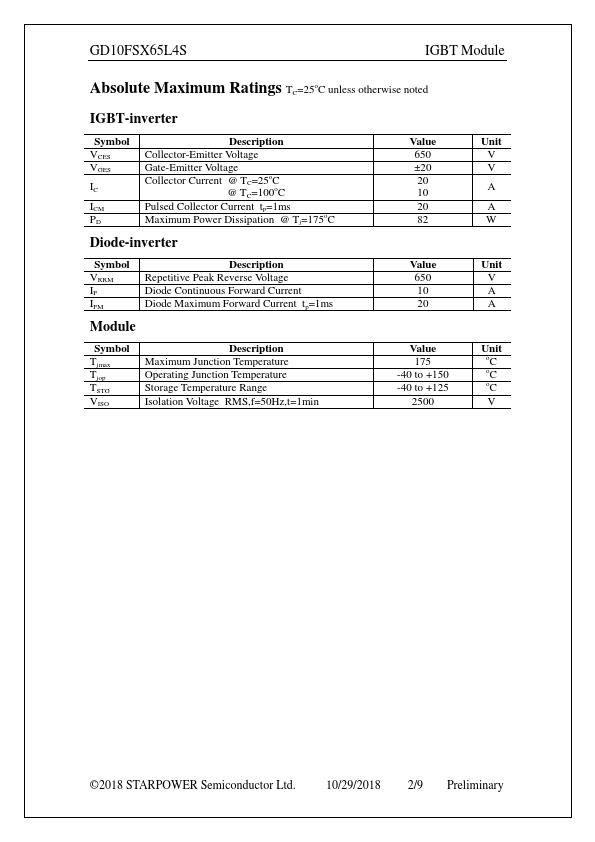

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD10FSX65L4S
Manufacturer	STARPOWER
File Size	217.32 KB
Description	IGBT
Datasheet	GD10FSX65L4S-STARPOWER.pdf

GD10FSX65L4S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Low switching loss.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
