SCTWA40N12G24AG Datasheet, Mosfet, STMicroelectronics

SCTWA40N12G24AG Features

  • Mosfet Order code SCTWA40N12G24AG VDS 1200 V RDS(on) max. 105 mΩ ID 33 A HiP247-4 2 34 1 Drain(1, TAB)
  • AEC-Q101 qualified
  • Very fast and robust intrinsic body diode <

PDF File Details

Part number:

SCTWA40N12G24AG

Manufacturer:

STMicroelectronics ↗

File Size:

219.90kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 2nd generation SiC MOSFET technology.

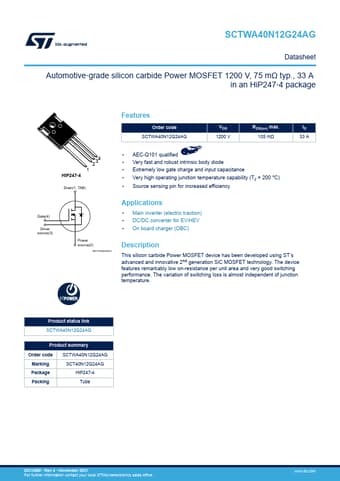

Datasheet Preview: SCTWA40N12G24AG 📥 Download PDF (219.90kb)
Page 2 of SCTWA40N12G24AG Page 3 of SCTWA40N12G24AG

SCTWA40N12G24AG Application

  • Applications
  • Main inverter (electric traction)
  • DC/DC converter for EV/HEV
  • On board charger (OBC) Description This sili
