STF140N6F7 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STF140N6F7 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Order code STF140N6F7 Table 1: Device summary Marking .

STF140N6F7 Datasheet (560.13 KB)

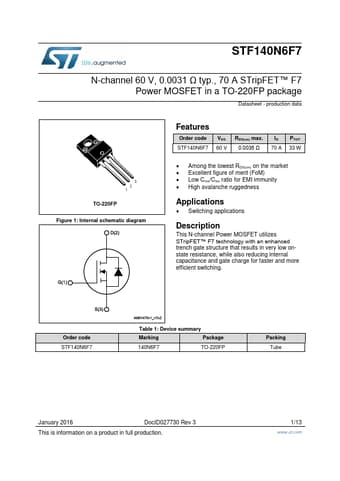

STF140N6F7 Datasheet Preview — Preview of STF140N6F7 PDF

Datasheet Details

Part number:

STF140N6F7

Manufacturer:

STMicroelectronics ↗

File Size:

560.13 KB

Description:

N-channel power mosfet.
STF140N6F7 N-channel 60 V, 0.0031 Ω typ., 70 A STripFET™ F7 Power MOSFET in a TO-220FP package Datasheet - production data TO-220FP Figure 1: Intern.
