STF140N8F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

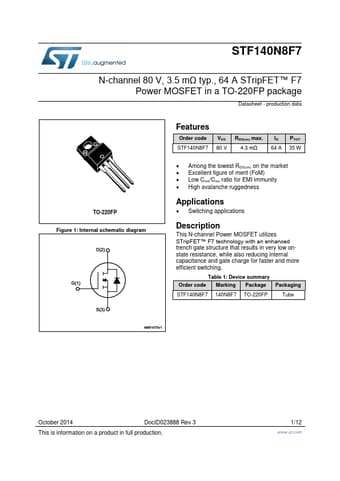

STF140N8F7 Datasheet Preview — Preview of STF140N8F7 PDF

Datasheet Details

Part number	STF140N8F7
Manufacturer	STMicroelectronics
File Size	471.63 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STF140N8F7-STMicroelectronics.pdf

STF140N8F7 Product details

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

Order code STF140N8F7 VDS 80 V RDS(on) max. 4.3 mΩ ID 64 A PTOT 35 W.
Among the lowest RDS(on) on the market.
Excellent figure of merit (FoM).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness.
