STF14NM65N Datasheet - STMicroelectronics

N-channel Power MOSFET

STF14NM65N Features

* www.DataSheet4U.com Type VDSS (@TJmax) 710 V 710 V 710 V 710 V 710 V RDS(on) max < 0.38 Ω < 0.38 Ω < 0.38 Ω < 0.38 Ω < 0.38 Ω ID 3 STI14NM65N STB14NM65N STF14NM65N STP14NM65N STW14NM65N 12 A 12 A 12 A(1) 12 A 12 A 1 2 3 12 TO-220 3 1 I²PAK D²PAK 3 1. Limited only by maximum temperature

STF14NM65N General Description

This series of devices is designed using the second generation of MDmesh™ Technology. This revolutionary Power MOSFET associates a new vertical structure to the Company’s strip layout to yield one of the world’s lowest onresistance and gate charge. It is therefore suitable for the most demanding hig.

STF14NM65N Datasheet (592.66 KB)

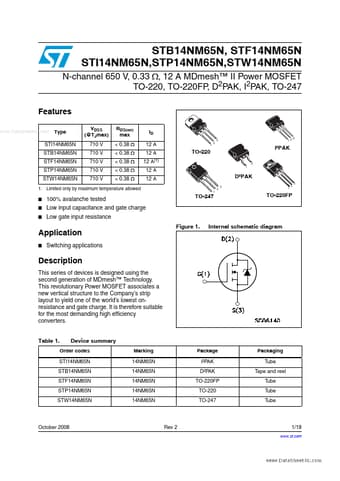

Preview of STF14NM65N PDF

Datasheet Details

Part number:

STF14NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

592.66 KB

Description:

N-channel power mosfet.
STB14NM65N, STF14NM65N STI14NM65N,STP14NM65N,STW14NM65N N-channel 650 V, 0.33 Ω, 12 A MDmesh™ II Power MOSFET TO-220, TO-220FP, D2PAK, I2PAK, TO-247 F.
