STGB40V60F, STGB40V60F-1 Datasheet - STMicroelectronics

STGB40V60F 600V 40A IGBT

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure. The device is part of the V series IGBTs, which represent an optimum compromise between conduction and switching losses to maximize the efficiency of very high frequency converters. Furthermore, the posi.

STGB40V60F Features

* Maximum junction temperature: TJ = 175 °C

* Tail-less switching off

* VCE(sat) = 1.8 V (typ.) @ IC = 40 A

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance Applications

* Welding

* PFC converters - s

STGB40V60F-1-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGB40V60F, STGB40V60F-1. Please refer to the document for exact specifications by model.

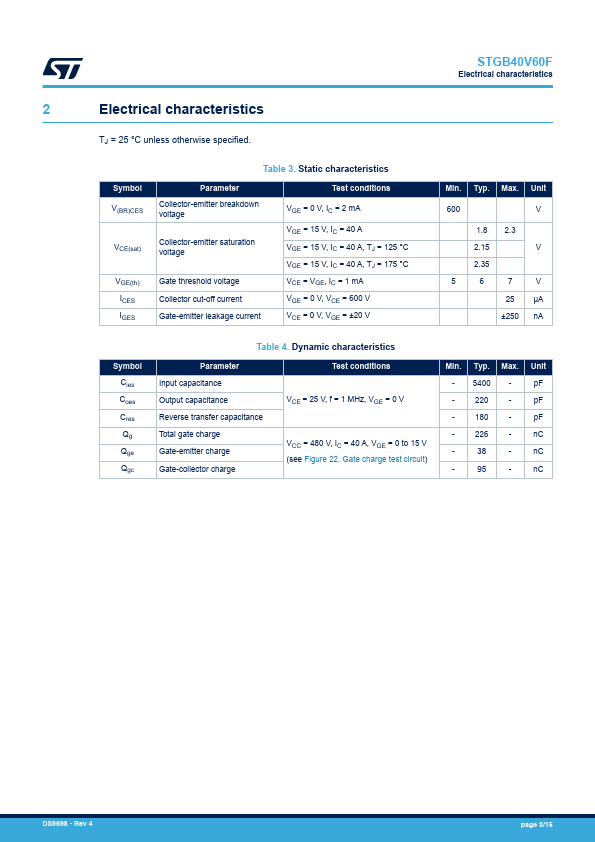

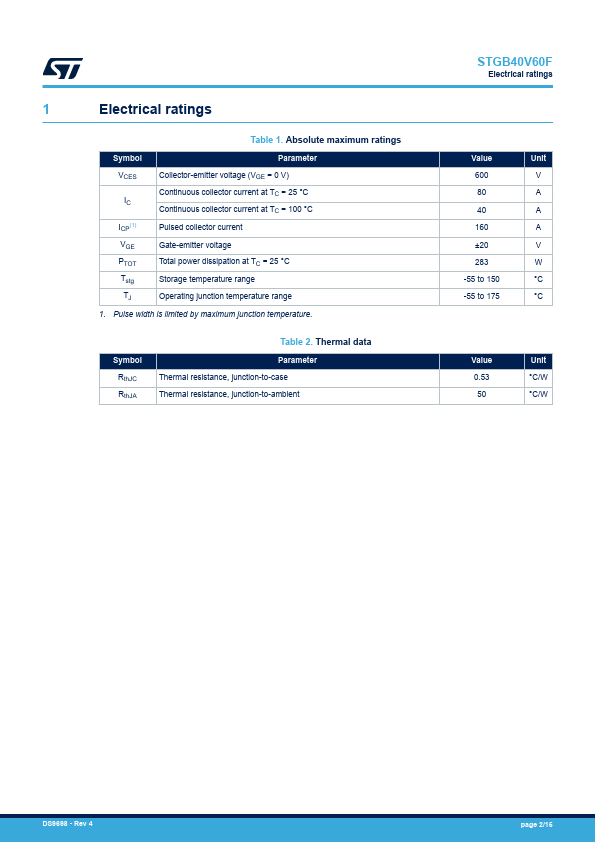

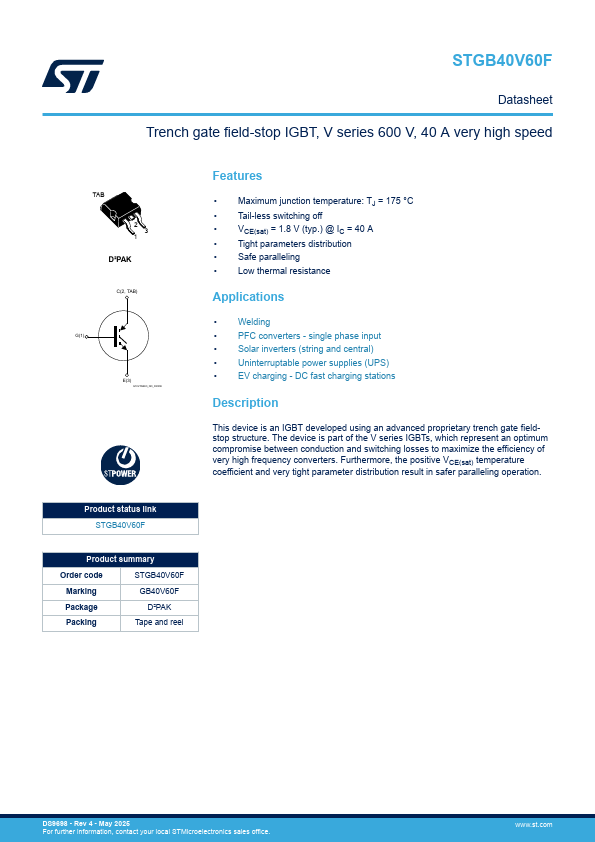

STGB40V60F Datasheet Preview Page 2 STGB40V60F Datasheet Preview Page 3
