STGB6NC60HDT4 Datasheet - STMicroelectronics

IGBT

STGB6NC60HDT4 Features

* Low VCE(sat)

* Low CRES/CIES ratio (no cross-conduction susceptibility)

* Very soft ultra fast recovery antiparallel diode

* High-frequency operation Applications

* High-frequency inverters

* SMPS and PFC in both hard switch and resonant topologies

STGB6NC60HDT4 General Description

Using the latest high-voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs characterized by an outstanding performance. The “H” suffix identifies a family optimized for high-frequency applications which achieve very hi.

STGB6NC60HDT4 Datasheet (893.65 KB)

Preview of STGB6NC60HDT4 PDF

Datasheet Details

Part number:

STGB6NC60HDT4

Manufacturer:

STMicroelectronics ↗

File Size:

893.65 KB

Description:

Igbt.

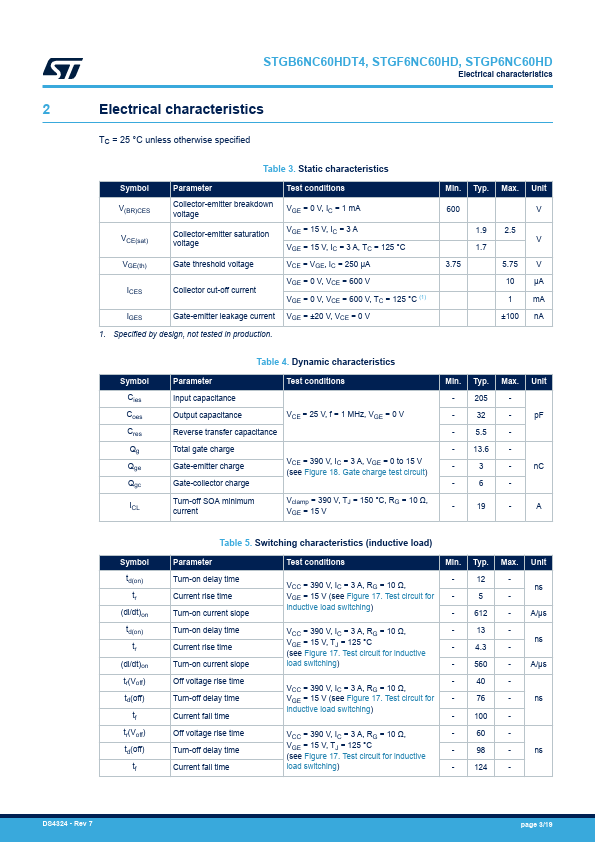

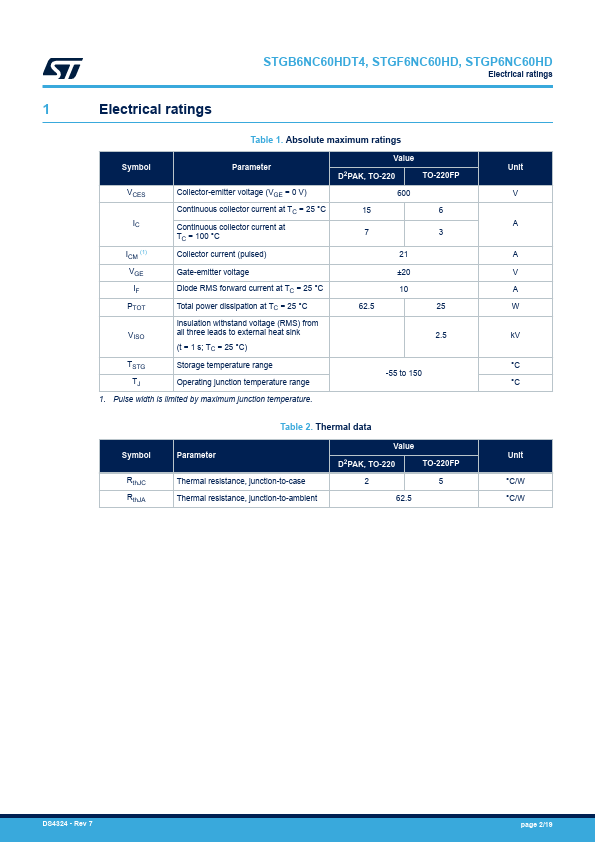

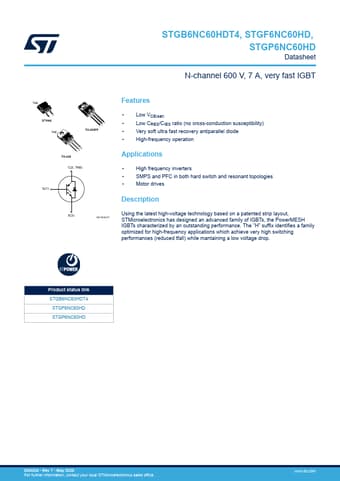

STGB6NC60HDT4, STGF6NC60HD, STGP6NC60HD Datasheet N-channel 600 V, 7 A, very fast IGBT TAB 3 1 D2 PAK TAB 3 2 1 TO-220FP TO-220 1 23 C(2, TAB) G.
