STGIPS20C60 - 600V short-circuit rugged IGBT

Product Overview

STMicroelectronics

Datasheet Details

Part number	STGIPS20C60
Manufacturer	STMicroelectronics
File Size	690.93 KB
Description	600V short-circuit rugged IGBT
Datasheet	STGIPS20C60 Datasheet

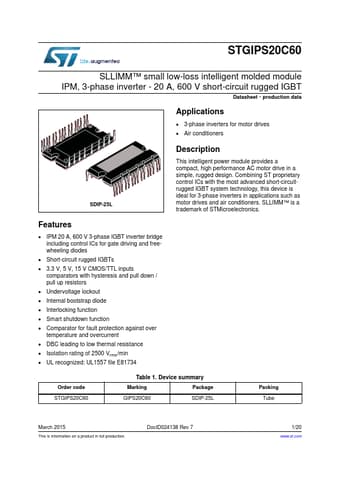

Additional preview pages of the STGIPS20C60 datasheet.

Product details

Description

SDIP-25L This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design.Combining ST proprietary control ICs with the most advanced short-circuitrugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as motor drives and air conditioners.SLLIMM™ is a trademark of STMicroelectronics.

Features

IPM 20 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes.
Short-circuit rugged IGBTs.
3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down / pull up resistors.
Undervoltage lockout.
Internal bootstrap diode.
Interlocking function.
Smart shutdown function.
Comparator for fault protection against over temperature and overcurrent.
DBC leading to.
