STGIPS20C60T-H - IGBT

STGIPS20C60T-H Description

STGIPS20C60T-H SLLIMM™ small low-loss intelligent molded module IPM, 3-phase inverter - 20 A, 600 V short-circuit rugged IGBT Datasheet - production .
This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design.

STGIPS20C60T-H Features

* IPM 20 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
* Short-circuit rugged IGBTs
* 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull-down / pull-up resistors
* Undervoltage lockout

STGIPS20C60T-H Applications

* 3-phase inverters for motor drives

📥 Download Datasheet

Preview of STGIPS20C60T-H PDF

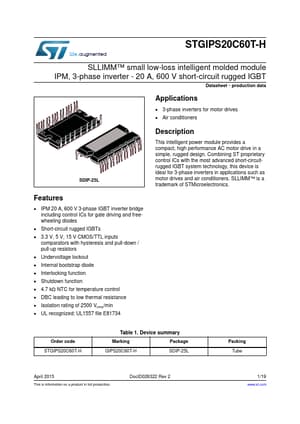

datasheet Preview Page 2 datasheet Preview Page 3
