STGIPS10K60T

600V short-circuit rugged IGBT

STGIPS10K60T Features

* IPM 10 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes

* Short-circuit rugged IGBTs

* VCE(sat) negative temperature coefficient

* 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull down / pull up resistors

STGIPS10K60T General Description

This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuitrugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and.

STGIPS10K60T Datasheet (332.40 KB)

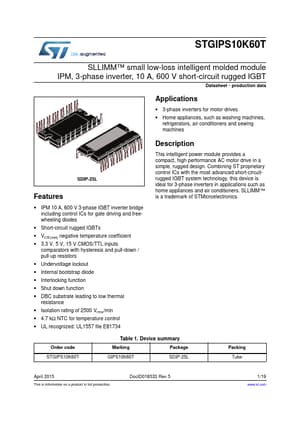

Preview of STGIPS10K60T PDF

Datasheet Details

Part number:

STGIPS10K60T

Manufacturer:

STMicroelectronics ↗

File Size:

332.40 KB

Description:

600v short-circuit rugged igbt.
STGIPS10K60T SLLIMM™ (small low-loss intelligent molded module) IPM, 3-phase inverter - 10 A, 600 V short-circuit rugged IGBT Datasheet - production .
