STGP5H60DF

IGBT

STMicroelectronics

STGP5H60DF Features

* High-speed switching

* Tight parameter distribution

* Safe paralleling

* Low thermal resistance

* Short-circuit rated

* Ultrafast soft recovery antiparallel diode Applications

* Motor control

* UPS

* PFC Description These dev

STGP5H60DF General Description

These devices are IGBTs developed using an advanced proprietary trench gate fieldE(3) stop structure. These devices are part of the H series of IGBTs, which represents an NG1E3C2T optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency conver.

STGP5H60DF Datasheet (888.01 KB)

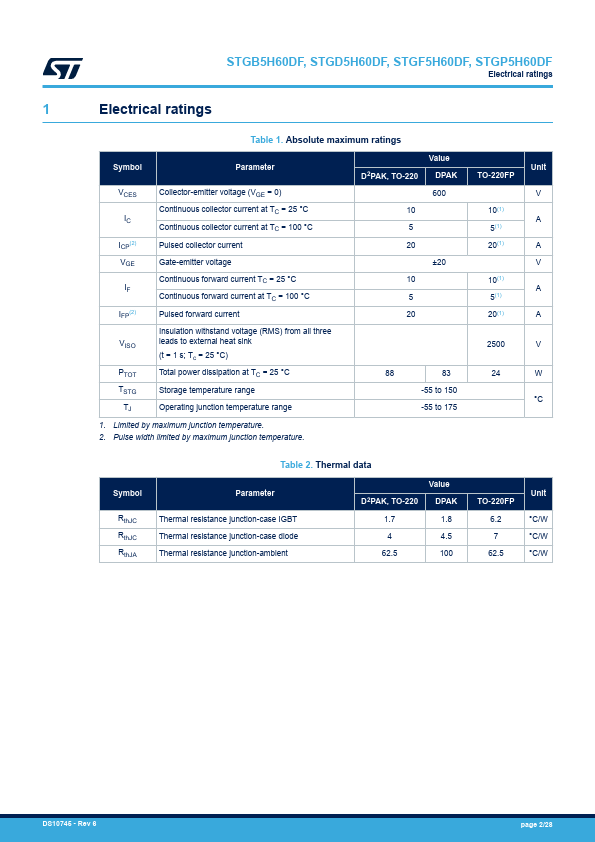

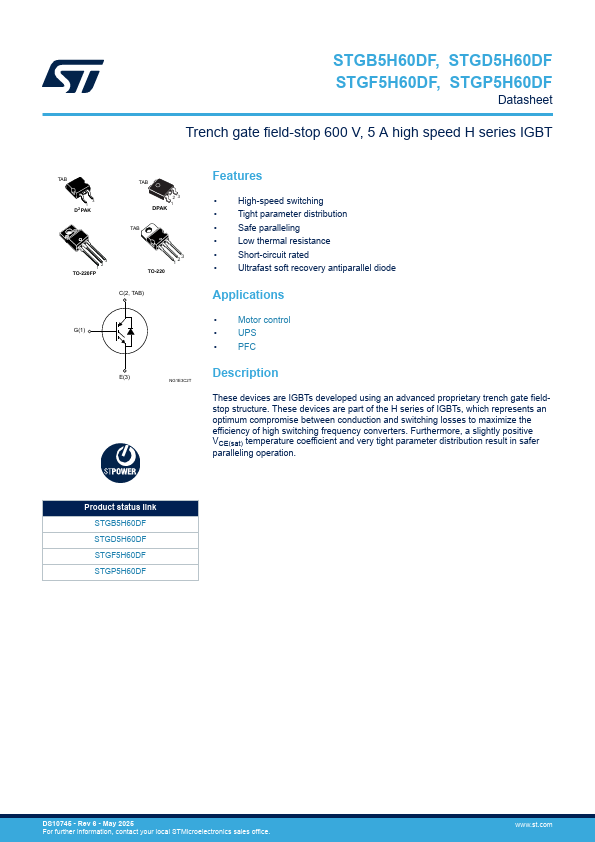

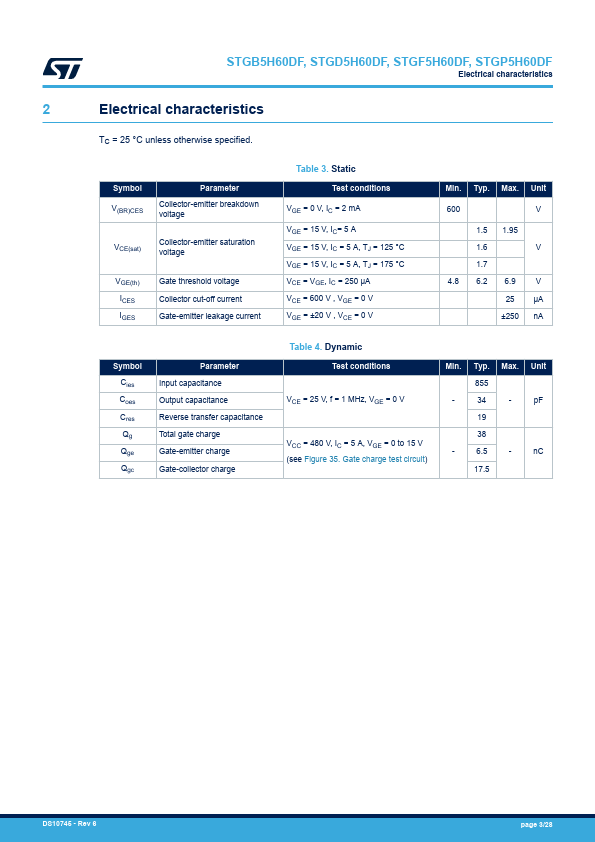

STGP5H60DF Datasheet Preview — Preview of STGP5H60DF PDF

Datasheet Details

Part number:

STGP5H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

888.01 KB

Description:

Igbt.
STGB5H60DF, STGD5H60DF STGF5H60DF, STGP5H60DF Datasheet Trench gate field-stop 600 V, 5 A high speed H series IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB .
