STH160N4LF6-2 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

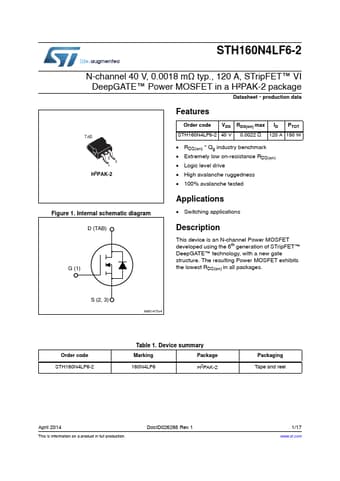

STH160N4LF6-2 Datasheet Preview — Preview of STH160N4LF6-2 PDF

Datasheet Details

Part number	STH160N4LF6-2
Manufacturer	STMicroelectronics
File Size	0.98 MB
Description	N-channel Power MOSFET
Datasheet	STH160N4LF6-2-STMicroelectronics.pdf

STH160N4LF6-2 Product details

Description

Ć This device is an N-channel Power MOSFET th developed using the 6 generation of STripFET™ DeepGATE™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.6ĆĆ $0Y Order code STH160N4LF6-2 Table 1. Device summary Marking Package 160N4LF6 2 H PAK-2 Packaging Tape and reel April 2014 This is information on a product in full production.DocID026265 Rev 1 1/17 www.st.com Contents Contents STH160N4L

Features

Order code VDS RDS(on) max ID PTOT STH160N4LF6-2 40 V 0.0022 Ω 120 A 150 W.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
Logic level drive.
High avalanche ruggedness.
100% avalanche tested Figure 1. Internal schematic diagram.
