STH270N4F3-2 - N-channel Power MOSFET

STMicroelectronics

The STH270N4F3-2 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STH270N4F3-2 N-channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STH270N4F3-2** N-channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STH270N4F3-2
Manufacturer	STMicroelectronics
File Size	609.92 KB
Description	N-channel Power MOSFET
Datasheet	STH270N4F3-2-STMicroelectronics.pdf
Additional preview pages of the STH270N4F3-2 datasheet.

STH270N4F3-2 Product details

Description

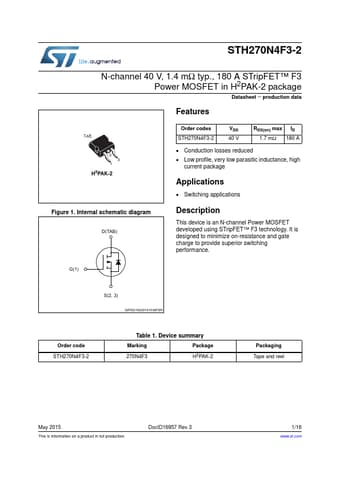

This device is an N-channel Power MOSFET developed using STripFET™ F3 technology. 6 ,3')65 Order code STH270N4F3-2 Table 1. Device summary Marking Package 270N4F3 H2PAK-2 Packaging Tape and reel May 2015 This is information on a product in full production.DocID16957 Rev 3 1/16 www.st.com 16 Contents Contents STH270N4F3-2 1 Electrical ratings

Features

TAB 2 3 1 H2PAK-2 Figure 1. Internal schematic diagram '7$% Order codes STH270N4F3-2 VDS 40 V RDS(on) max ID 1.7 mΩ 180 A.
Conduction losses reduced.
Low profile, very low parasitic inductance, high current package.
