STH270N8F7-2 - N-channel MOSFET

STMicroelectronics

The STH270N8F7-2 by STMicroelectronics is a N-channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

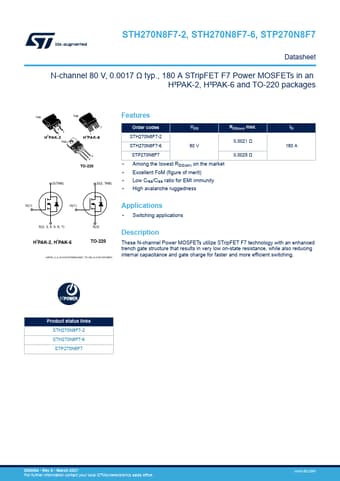

STH270N8F7-2 N-channel MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STH270N8F7-2** N-channel MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STH270N8F7-2
Manufacturer	STMicroelectronics
File Size	501.99 KB
Description	N-channel MOSFET
Datasheet	STH270N8F7-2-STMicroelectronics.pdf
Additional preview pages of the STH270N8F7-2 datasheet.

STH270N8F7-2 Product details

Description

These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

Order codes VDS RDS(on) max. STH270N8F7-2 STH270N8F7-6 80 V 0.0021 Ω STP270N8F7 0.0025 Ω.
Among the lowest RDS(on) on the market.
Excellent FoM (figure of merit).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness ID 180 A G(1) G(1) S(2, 3, 4, 5, 6, 7) H2PAK-2, H2PAK-6 S(3) TO-220 H2PAK_2_6_N-CHG1DTABS234567_TO-220_N-CHG1D2TABS3.
