STH270N8F7-6 Datasheet - STMicroelectronics

N-channel MOSFET

STH270N8F7-6 Features

* Order codes VDS RDS(on) max. STH270N8F7-2 STH270N8F7-6 80 V 0.0021 Ω STP270N8F7 0.0025 Ω

* Among the lowest RDS(on) on the market

* Excellent FoM (figure of merit)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness ID 180 A G(1) G(1) S(2,

STH270N8F7-6 General Description

These N-channel Power MOSFETs utilize STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. Product status links STH270N8F7-2 STH270N8F7-6 STP270N8.

STH270N8F7-6 Datasheet (501.99 KB)

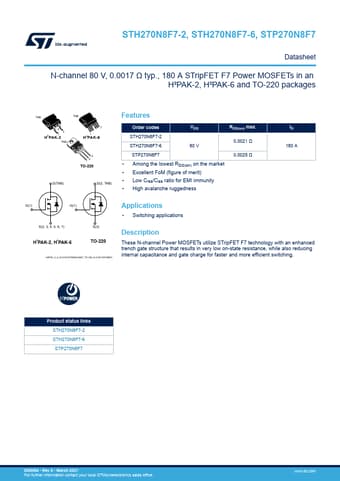

Preview of STH270N8F7-6 PDF

Datasheet Details

Part number:

STH270N8F7-6

Manufacturer:

STMicroelectronics ↗

File Size:

501.99 KB

Description:

N-channel mosfet.
STH270N8F7-2, STH270N8F7-6, STP270N8F7 Datasheet N-channel 80 V, 0.0017 Ω typ., 180 A STripFET F7 Power MOSFETs in an H²PAK-2, H²PAK-6 and TO-220 pack.
