STH272N6F7-6AG

N-CHANNEL POWER MOSFET

STMicroelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	STMicroelectronics	STH272N6F7-6AG	MOSFET N-CH 60V 180A H2PAK-6	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (670.00 KB)

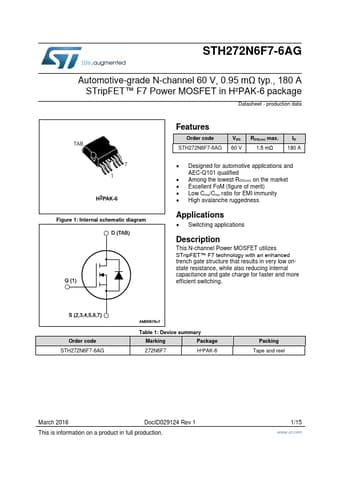

STH272N6F7-6AG Datasheet Preview — Preview of STH272N6F7-6AG Datasheet

Datasheet Details

Part number:

STH272N6F7-6AG

Manufacturer:

STMicroelectronics ↗

File Size:

670.00 KB

Description:

N-channel power mosfet.
STH272N6F7-6AG Automotive-grade N-channel 60 V, 0.95 mΩ typ., 180 A STripFET™ F7 Power MOSFET in H².
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure .

✔ STH272N6F7-6AG Features

Order code STH272N6F7-6AG VDS 60 V RDS(on) max. 1.5 mΩ ID 180 A
Designed for automotive applications and AEC-Q101 qualified
Among the lowest RDS(on) on the market

✔ STH272N6F7-6AG Application

and AEC-Q101 qualified
Among the lowest RDS(on) on the market
Excellent FoM (figure of merit)
Low Crss
