STH290N4F6-6AG, STH290N4F6-2AG Datasheet - STMicroelectronics

STH290N4F6-6AG N-channel Power MOSFET

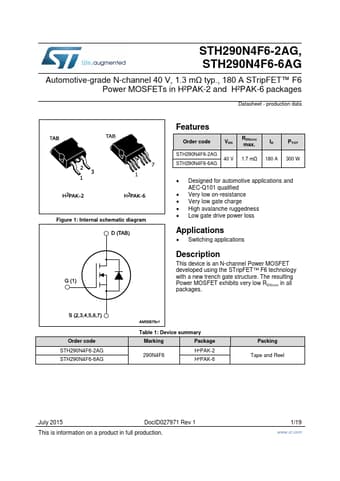

This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages. Order code STH290N4F6-2AG STH290N4F6-6AG Table 1: Device summary Marking Package 290N4F6 H²PAK-2 H²PAK-6 .

STH290N4F6-6AG Features

* Order code VDS STH290N4F6-2AG 40 V STH290N4F6-6AG RDS(on) max. 1.7 mΩ ID 180 A PTOT 300 W

* Designed for automotive applications and AEC-Q101 qualified

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power lo

STH290N4F6-2AG-STMicroelectronics.pdf

STH290N4F6-6AG Datasheet Preview — This datasheet PDF includes multiple part numbers: STH290N4F6-6AG, STH290N4F6-2AG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STH290N4F6-6AG, STH290N4F6-2AG

Manufacturer:

STMicroelectronics ↗

File Size:

357.54 KB

Description:

N-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: STH290N4F6-6AG, STH290N4F6-2AG.
Please refer to the document for exact specifications by model.
