STI175N4F6AG Datasheet, Mosfet, STMicroelectronics

STI175N4F6AG Features

  • Mosfet Order code VDS STI175N4F6AG 40 V RDS(on) max. 2.7 mΩ ID 120 A PTOT 190 W
  • Designed for automotive applications and AEC-Q101 qualified
  • Very low on-resistance

PDF File Details

Part number:

STI175N4F6AG

Manufacturer:

STMicroelectronics ↗

File Size:

541.75kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure. The resulting

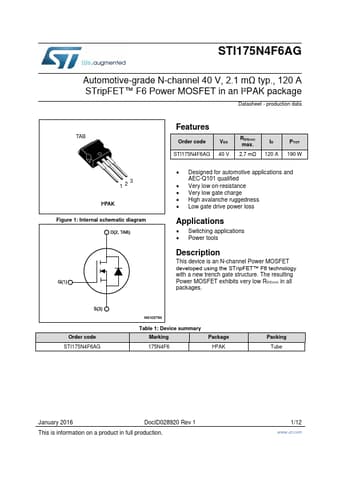

Datasheet Preview: STI175N4F6AG 📥 Download PDF (541.75kb)
Page 2 of STI175N4F6AG Page 3 of STI175N4F6AG

STI175N4F6AG Application

  • Applications and AEC-Q101 qualified
  • Very low on-resistance
  • Very low gate charge
  • High avalanche ruggedness
  • Lo
