STI17NF25 Datasheet, Mosfet, STMicroelectronics

STI17NF25 Features

  • Mosfet Type STD17NF25 STI17NF25 STF17NF25 STP17NF25 VDSS 250V 250V 250V 250V RDS(on) < 0.165Ω < 0.165Ω < 0.165Ω < 0.165Ω ID 17A 17A 17A 17A PTOT 90W 90W 25W 90W
  • Low gate charge

PDF File Details

Part number:

STI17NF25

Manufacturer:

STMicroelectronics ↗

File Size:

448.66kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input c

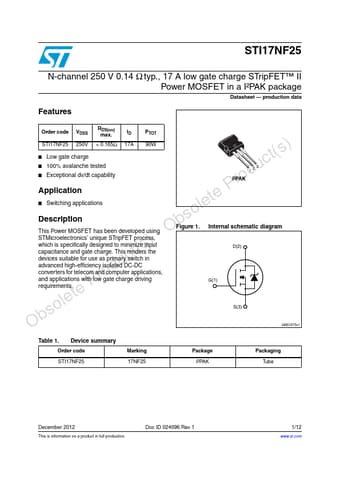

Datasheet Preview: STI17NF25 📥 Download PDF (448.66kb)
Page 2 of STI17NF25 Page 3 of STI17NF25

STI17NF25 Application

  • Applications
  • Switching applications 3 2 1 TO-220 123 I²PAK 3 2 1 TO-220FP 3 1 DPAK Internal schematic diagram Order codes Part numbe
