STI35N65M5 - N-channel Power MOSFET

STMicroelectronics

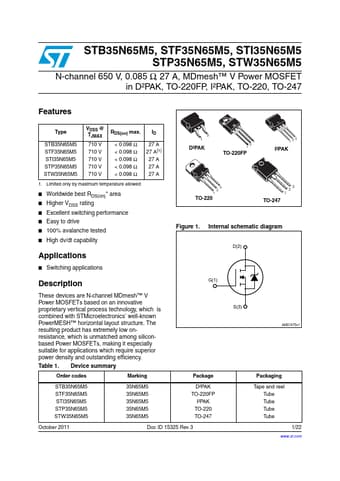

STI35N65M5 Datasheet Preview — Preview of STI35N65M5 PDF

Datasheet Details

Part number	STI35N65M5
Manufacturer	STMicroelectronics ↗
File Size	703.09 KB
Description	N-channel Power MOSFET
Datasheet	STI35N65M5-STMicroelectronics.pdf

STI35N65M5 Product details

Description

' These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.The resulting product has extremely low onresistance, which is unmatched among siliconbased Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiency.Table 1. Device summary Order codes Marking 3 !-V

Features

Type STB35N65M5 STF35N65M5 STI35N65M5 STP35N65M5 STW35N65M5 VDSS @ TJMAX 710 V 710 V 710 V 710 V 710 V RDS(on) max. ID < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω < 0.098 Ω 27 A 27 A(1) 27 A 27 A 27 A 1. Limited only by maximum temperature allowed.
Worldwide best RDS(on).
area.
Higher VDSS rating.
Excellent switching performance.
Easy to drive.
100% avalanche tested.
High dv/dt capability.
