STI360N4F6

N-channel Power MOSFET

STI360N4F6 Features

* TAB TAB 123 I²PAK 3 2 1 TO-220 Figure 1. Internal schematic diagram ' 7$%

*  6  Order codes STI360N4F6 STP360N4F6 VDS 40 V RDS(on) max. ID 1.8 mΩ 120 A

* Designed for automotive applications and AEC-Q101 qualified

* Very low on-resistance

* Low gate c

STI360N4F6 General Description

These devices are N-channel Power MOSFETs developed using the STripFET™ F6 technology with a new trench gate structure. The resulting Power MOSFETs exhibit very low RDS(on) in all packages. $0Y Order codes STI360N4F6 STP360N4F6 Table 1. Device summary Marking Packages 360N4F6 I²PAK TO-2.

STI360N4F6 Datasheet (495.67 KB)

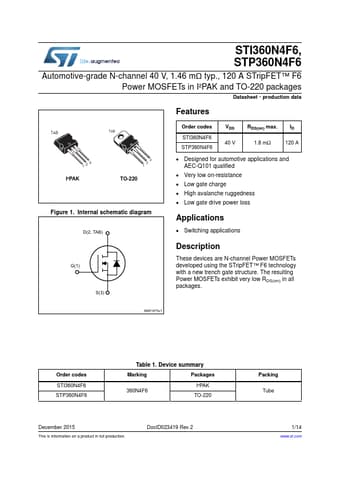

Preview of STI360N4F6 PDF

Datasheet Details

Part number:

STI360N4F6

Manufacturer:

STMicroelectronics ↗

File Size:

495.67 KB

Description:

N-channel power mosfet.
STI360N4F6, STP360N4F6 Automotive-grade N-channel 40 V, 1.46 mΩ typ., 120 A STripFET™ F6 Power MOSFETs in I²PAK and TO-220 packages Datasheet - produc.
