STL120N8F7 - N-channel Power MOSFET

Datasheet Summary

Description

This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

  • PowerFLAT 5x6 Order code VDS RDS(on) max. STL120N8F7 80 V 4.8 mΩ.
  • Among the lowest RDS(on) on the market.
  • Excellent FoM (figure of merit).
  • Low Crss/Ciss ratio for EMI immunity.
  • High avalanche ruggedness ID 120 A PTOT 140 W D(5, 6, 7, 8) 8 76 5.

📥 Download Datasheet

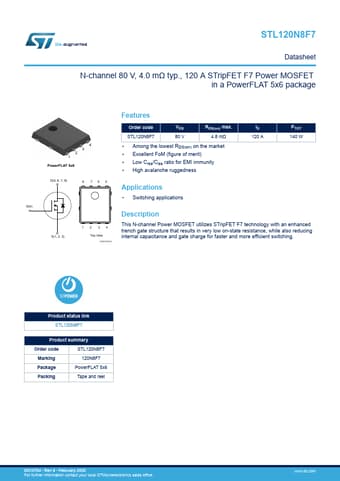

Datasheet preview – STL120N8F7

Datasheet Details

Part number STL120N8F7
Manufacturer STMicroelectronics
File Size 831.51 KB
Description N-channel Power MOSFET
Datasheet download datasheet STL120N8F7 Datasheet
Additional preview pages of the STL120N8F7 datasheet.

📁 Similar Datasheet

  • STL120NH02V - N-CHANNEL MOSFET (ST Microelectronics)
  • STL12S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL100N3LLH6 - N-Channel Power MOSFET (ST Microelectronics)
  • STL100N3LLH7 - Power MOSFETs N-channel 30V (ST Microelectronics)
  • STL100NH3LL - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STL140N4LLF5 - Power MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STL120N8F7 Datasheet N-channel 80 V, 4.0 mΩ typ., 120 A STripFET F7 Power MOSFET in a PowerFLAT 5x6 package Features PowerFLAT 5x6 Order code VDS RDS(on) max. STL120N8F7 80 V 4.8 mΩ • Among the lowest RDS(on) on the market • Excellent FoM (figure of merit) • Low Crss/Ciss ratio for EMI immunity • High avalanche ruggedness ID 120 A PTOT 140 W D(5, 6, 7, 8) 8 76 5 Applications • Switching applications G(4) Description S(1, 2, 3) 12 34 Top View AM15540v2 This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
