STL125N8F7AG - Automotive N-channel MOSFET

Datasheet Summary

Description

This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

  • Order code STL125N8F7AG VDS 80 V RDS(on) max. 4.5 mΩ.
  • AEC-Q101 qualified.
  • Among the lowest RDS(on) on the market.
  • Excellent FoM (figure of merit).
  • Low Crss/Ciss ratio for EMI immunity.
  • High avalanche ruggedness.
  • Wettable flank package ID 120 A G(4).

📥 Download Datasheet

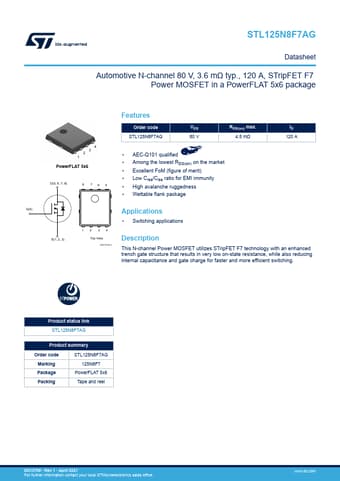

Datasheet preview – STL125N8F7AG

Datasheet Details

Part number STL125N8F7AG
Manufacturer STMicroelectronics
File Size 375.82 KB
Description Automotive N-channel MOSFET
Datasheet download datasheet STL125N8F7AG Datasheet
Additional preview pages of the STL125N8F7AG datasheet.

📁 Similar Datasheet

  • STL120NH02V - N-CHANNEL MOSFET (ST Microelectronics)
  • STL12S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL12S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL100N3LLH6 - N-Channel Power MOSFET (ST Microelectronics)
  • STL100N3LLH7 - Power MOSFETs N-channel 30V (ST Microelectronics)
  • STL100NH3LL - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STL140N4LLF5 - Power MOSFET (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STL125N8F7AG Datasheet Automotive N-channel 80 V, 3.6 mΩ typ., 120 A, STripFET F7 Power MOSFET in a PowerFLAT 5x6 package 4 3 2 1 PowerFLAT 5x6 D(5, 6, 7, 8) 8 76 5 Features Order code STL125N8F7AG VDS 80 V RDS(on) max. 4.5 mΩ • AEC-Q101 qualified • Among the lowest RDS(on) on the market • Excellent FoM (figure of merit) • Low Crss/Ciss ratio for EMI immunity • High avalanche ruggedness • Wettable flank package ID 120 A G(4) Applications • Switching applications S(1, 2, 3) 12 34 Top View AM15540v2 Description This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
