STL220N3LLH7 Datasheet, Mosfet, STMicroelectronics

STL220N3LLH7 Features

  • Mosfet 1 2 3 4 PowerFLAT™5x6 Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 Order code STL220N3LLH7 VDS 30 V RDS(on) max 0.0011 Ω ID 50 A
  • Very low on-resistance <

PDF File Details

Part number:

STL220N3LLH7

Manufacturer:

STMicroelectronics ↗

File Size:

609.23kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device exhibits low on-state resistance and capacitance for improved conduction and switching performance. G(4) S(1, 2, 3) 1

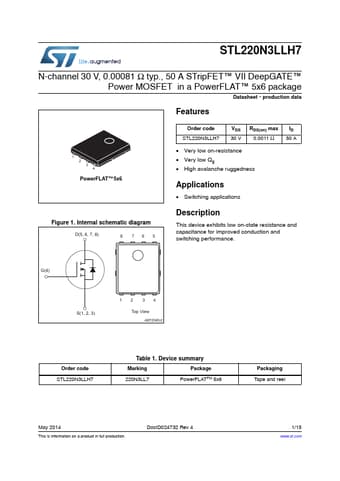

Datasheet Preview: STL220N3LLH7 📥 Download PDF (609.23kb)
Page 2 of STL220N3LLH7 Page 3 of STL220N3LLH7

STL220N3LLH7 Application

  • Applications
  • Switching applications Description This device exhibits low on-state resistance and capacitance for improved conduction and
