STL225N6F7AG Datasheet, Mosfet, STMicroelectronics

STL225N6F7AG Features

  • Mosfet Order code STL225N6F7AG V DS 60 V RDS(on) max 1.4 mΩ ID 120 A
  • AEC-Q101 qualified
  • Among the lowest RDS(on) on the market
  • Excellent FoM (figure of merit)

PDF File Details

Part number:

STL225N6F7AG

Manufacturer:

STMicroelectronics ↗

File Size:

810.13kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate

Datasheet Preview: STL225N6F7AG 📥 Download PDF (810.13kb)

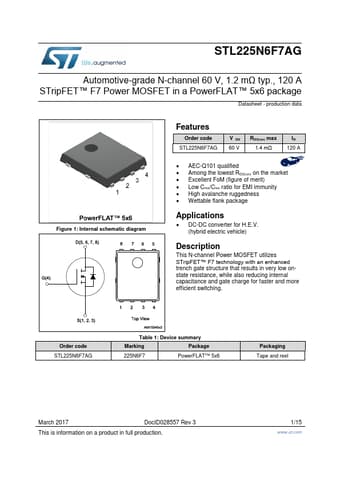

Page 2 of STL225N6F7AG Page 3 of STL225N6F7AG

STL225N6F7AG Application

  • Applications
  • DC-DC converter for H.E.V. (hybrid electric vehicle) Description This N-channel Power MOSFET utilizes STripFET™ F7 technology
