STL23N85K5

18 A PowerFLAT 8x8 HV Zener-protected SuperMESH 5 Power MOSFET

ST Microelectronics

STL23N85K5 Features

* Type STL23N85K5 VDSS 850 V RDS(on)max < 0.275 Ω ID 18(1) PW 210 ' $ 3 3 3 1. The value is rated according to Rthj-c.

* PowerFLAT™ 8x8 HV worldwide best RDS(on) Worldwide best FOM (figure of merit) Ultra low gate charge 100% avalanche tested Zener-protecte

STL23N85K5 General Description

SuperMESH 5™ is a revolutionary avalancherugged very high voltage Power MOSFET technology based on an innovative proprietary vertical structure. The result is a drastic reduction in on-resistance and ultra low gate charge for applications which require superior power density and high efficiency. G(.

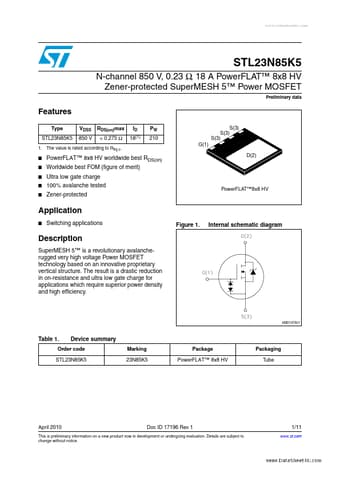

STL23N85K5 Datasheet (479.20 KB)

STL23N85K5 Datasheet Preview — Preview of STL23N85K5 PDF

Datasheet Details

Part number:

STL23N85K5

Manufacturer:

STMicroelectronics ↗

File Size:

479.20 KB

Description:

18 a powerflat 8x8 hv zener-protected supermesh 5 power mosfet.
