STL20NF06LAG Datasheet - STMicroelectronics

N-channel Power MOSFET

STL20NF06LAG Features

* Order code VDS RDS(on) max. ID PTOT STL20NF06LAG 60 V 40 mΩ 20 A 75 W Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View

* Designed for Automotive applications and AEC-Q101 qualified

* PowerFLAT™ 5x6 with wettable flanks

* Logic level VG

STL20NF06LAG General Description

This Power MOSFET series realized with STMicroelectronics unique STripFET™ process is specifically designed to minimize input capacitance and gate charge. It is therefore ideal as a primary switch in advanced high-efficiency isolated DC-DC converters for Telecom and Computer applications. It is also.

STL20NF06LAG Datasheet (816.93 KB)

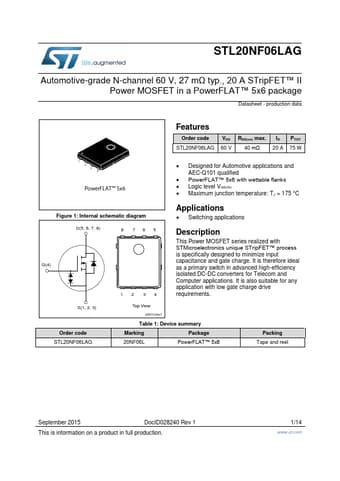

STL20NF06LAG Datasheet Preview — Preview of STL20NF06LAG PDF

Datasheet Details

Part number:

STL20NF06LAG

Manufacturer:

STMicroelectronics ↗

File Size:

816.93 KB

Description:

N-channel power mosfet.
STL20NF06LAG Automotive-grade N-channel 60 V, 27 mΩ typ., 20 A STripFET™ II Power MOSFET in a PowerFLAT™ 5x6 package Datasheet - production data Fea.
