STL20DNF06LAG

N-channel Power MOSFET

STMicroelectronics

STL20DNF06LAG Features

* Order code STL20DNF06LAG VDS 60 V RDS(on) max. 40 mΩ ID 20 A PTOT 75 W

* Designed for Automotive applications and AEC-Q101 qualified

* PowerFLAT™ 5x6 double island with wettable flanks

* Logic level VGS(th)

* Maximum junction temperature: TJ = 175 °C Applications

* Switching

STL20DNF06LAG General Description

This Power MOSFET series realized with STMicroelectronics unique STripFET™ process is specifically designed to minimize input capacitance and gate charge. It is therefore ideal as a primary switch in advanced high-efficiency isolated DC-DC converters for Telecom and Computer applications. It is also.

STL20DNF06LAG Datasheet (841.76 KB)

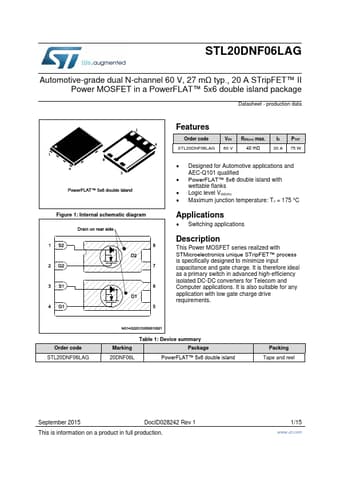

STL20DNF06LAG Datasheet Preview — Preview of STL20DNF06LAG PDF

Datasheet Details

Part number:

STL20DNF06LAG

Manufacturer:

STMicroelectronics ↗

File Size:

841.76 KB

Description:

N-channel power mosfet.
STL20DNF06LAG Automotive-grade dual N-channel 60 V, 27 mΩ typ., 20 A STripFET™ II Power MOSFET in a PowerFLAT™ 5x6 double island package Datasheet - .
