STL20DN10F7

Dual N-CHANNEL POWER MOSFET

STMicroelectronics

STL20DN10F7 Features

* Order code STL20DN10F7 VDS RDS(on) max 100 V 0.067 Ω ID 5A

* N-channel enhancement mode

* Lower RDS(on) x area vs previous generation

* 100% avalanche rated Applications

* Switching applications Description th This device utilizes the 7 generation of design rule

STL20DN10F7 General Description

th This device utilizes the 7 generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages. Order code STL20DN10F7 Table 1. Device summary Marking Package 20DN10F7 PowerFLAT™ 5x6 double is.

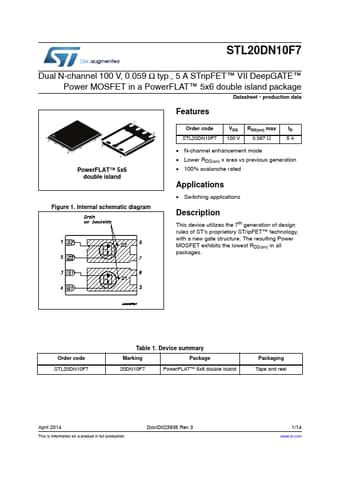

STL20DN10F7 Datasheet (868.89 KB)

STL20DN10F7 Datasheet Preview — Preview of STL20DN10F7 PDF

Datasheet Details

Part number:

STL20DN10F7

Manufacturer:

STMicroelectronics ↗

File Size:

868.89 KB

Description:

Dual n-channel power mosfet.
STL20DN10F7 Dual N-channel 100 V, 0.059 Ω typ., 5 A STripFET™ VII DeepGATE™ Power MOSFET in a PowerFLAT™ 5x6 double island package Datasheet - produc.
