STL25N15F3 - Power MOSFETs

ST Microelectronics

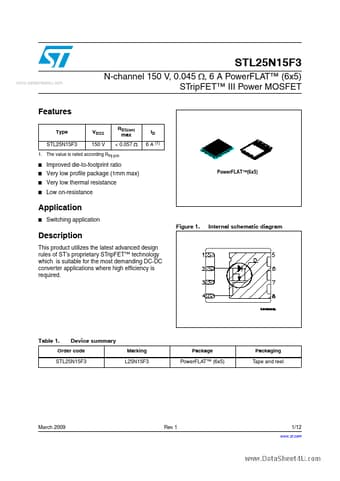

STL25N15F3 Datasheet Preview — Preview of STL25N15F3 PDF

Datasheet Details

Part number	STL25N15F3
Manufacturer	STMicroelectronics ↗
File Size	670.52 KB
Description	Power MOSFETs
Datasheet	STL25N15F3_STMicroelectronics.pdf

STL25N15F3 Product details

Description

This product utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology which is suitable for the most demanding DC-DC converter applications where high efficiency is required.

Features

Type STL25N15F3 VDSS 150 V RDS(on) max < 0.057 Ω ID 6 A (1) 1. The value is rated according Rthj-pcb.
Improved die-to-footprint ratio Very low profile package (1mm max) Very low thermal resistance Low on-resistance PowerFLAT™(6x5).
