STL23NM60ND Datasheet - ST Microelectronics

FDmesh II Power MOSFET(with fast diode) PowerFLAT (8x8) HV

STL23NM60ND Features

* Type STL23NM60ND VDSS (@Tjmax) 650 V RDS(on) max < 0.180 Ω ID 19.5 A(1) ' $ 3 3 3 "OTTOMVIEW 1. This value is rated according to Rthj-case.

* The worldwide best RDS(on)

* area amongst the fast recovery diode devices 100% avalanche tested Low input ca

STL23NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.It is the.

STL23NM60ND Datasheet (495.55 KB)

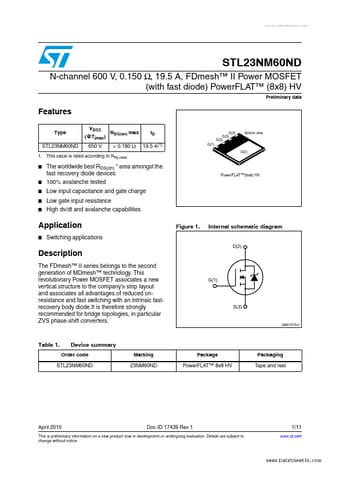

STL23NM60ND Datasheet Preview — Preview of STL23NM60ND PDF

Datasheet Details

Part number:

STL23NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

495.55 KB

Description:

Fdmesh ii power mosfet(with fast diode) powerflat (8x8) hv.
www.DataSheet4U.com STL23NM60ND N-channel 600 V, 0.150 Ω, 19.5 A, FDmesh™ II Power MOSFET (with fast diode) PowerFLAT™ (8x8) HV Preliminary data Fea.
