STL23NS3LLH7 Datasheet, Mosfet, STMicroelectronics

STL23NS3LLH7 Features

  • Mosfet Order code STL23NS3LLH7 VDS 30 V RDS(on) max 0.0037 Ω ID 23 A
  • Very low on-resistance
  • Very low Qg
  • High avalanche ruggedness
  • Embedded Schottky

PDF File Details

Part number:

STL23NS3LLH7

Manufacturer:

STMicroelectronics ↗

File Size:

560.18kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes the STripFET H7 technology with a trench gate structure combined with extremely low onresistance

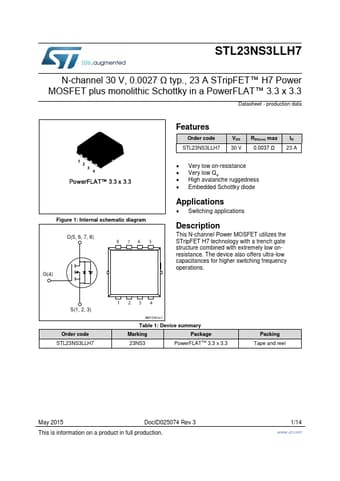

Datasheet Preview: STL23NS3LLH7 📥 Download PDF (560.18kb)
Page 2 of STL23NS3LLH7 Page 3 of STL23NS3LLH7

STL23NS3LLH7 Application

  • Applications
  • Switching applications Description This N-channel Power MOSFET utilizes the STripFET H7 technology with a trench gate structu
