STL25N15F4 - Power MOSFETs

ST Microelectronics

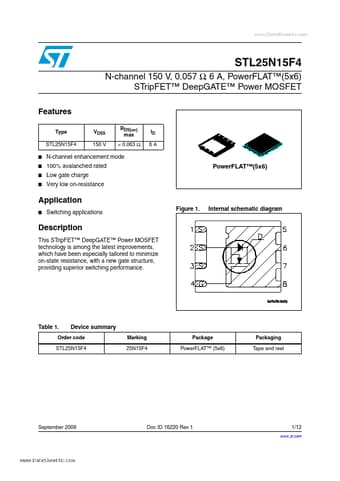

STL25N15F4 Datasheet Preview — Preview of STL25N15F4 PDF

Datasheet Details

Part number	STL25N15F4
Manufacturer	STMicroelectronics ↗
File Size	795.17 KB
Description	Power MOSFETs
Datasheet	STL25N15F4_STMicroelectronics.pdf

STL25N15F4 Product details

Description

This STripFET™ DeepGATE™ Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance, with a new gate structure, providing superior switching performance.

Features

Type STL25N15F4.
VDSS 150 V RDS(on) max < 0.063 Ω ID 6A N-channel enhancement mode 100% avalanched rated Low gate charge Very low on-resistance PowerFLAT™(5x6).
