STL20N6F7 - N-CHANNEL POWER MOSFET

STMicroelectronics

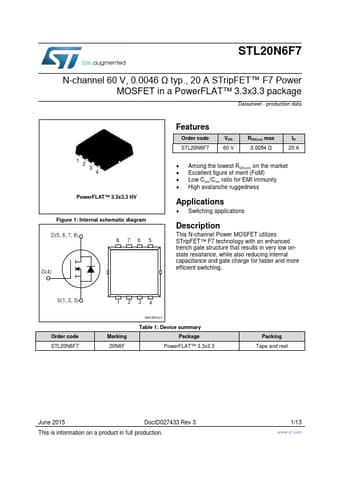

STL20N6F7 Datasheet Preview — Preview of STL20N6F7 PDF

Datasheet Details

Part number	STL20N6F7
Manufacturer	STMicroelectronics ↗
File Size	277.03 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STL20N6F7-STMicroelectronics.pdf

STL20N6F7 Product details

Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Features

Order code STL20N6F7 VDS 60 V RDS(on) max 0.0054 Ω ID 20 A.
Among the lowest RDS(on) on the market.
Excellent figure of merit (FoM).
Low Crss/Ciss ratio for EMI immunity.
High avalanche ruggedness.
