STL20NF20

Power MOSFETs

STL20NF20 Features

* Type STL20NF20

* VDSS RDS(on) ID 15 A PW 60 W 200 V < 0.125 Ω Exceptional dv/dt capability Low gate charge 100% avalanche tested PowerFLAT™ (5x6) Application

* Switching applications Description This Power MOSFET series realized with STMicroelectronics unique STripFET™ p

STL20NF20 General Description

This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency isolated DC-DC converters. Figure 1. Internal schematic diagram www..

STL20NF20 Datasheet (797.09 KB)

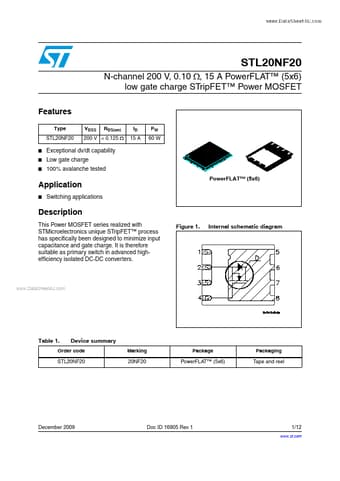

Preview of STL20NF20 PDF

Datasheet Details

Part number:

STL20NF20

Manufacturer:

STMicroelectronics ↗

File Size:

797.09 KB

Description:

Power mosfets.
