STL22N65M5 N-channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

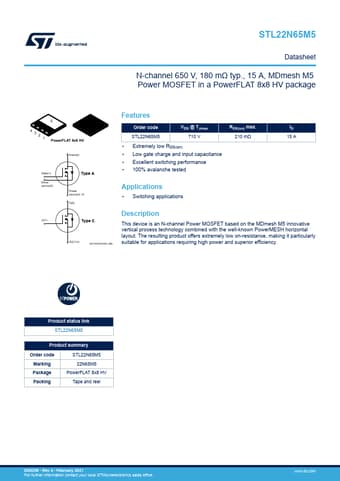

STL22N65M5 Datasheet N-channel 650 V, 180 mΩ typ., 15 A, MDmesh M5 Power MOSFET in a PowerFLAT 8x8 HV package 5 432 1 PowerFLAT 8x8 HV Drain(5) G.
This device is an N-channel Power MOSFET based on the MDmesh M5 innovative vertical process technology combined with the well-known PowerMESH horizont.

📥 Download Datasheet

Preview of STL22N65M5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Order code VDS @ TJmax RDS(on) max. ID STL22N65M5 710 V 210 mΩ 15 A
* Extremely low RDS(on)
* Low gate charge and input capacitance
* Excellent switching performance
