STL7N10F7 N-channel Power MOSFET

STL7N10F7 Description

STL7N10F7 N-channel 100 V, 0.027 Ω typ., 7 A STripFET™ VII DeepGATE™ Power MOSFET in a PowerFLAT™ 3.3x3.3 package Datasheet - production data .
th This device utilizes the 7 generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.

STL7N10F7 Features

* 1 2 3 4 PowerFLAT™ 3.3x3.3 Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) Order code STL7N10F7 VDS 100 V RDS(on) max 0.035 Ω ID 7A
* N-channel enhancement mode
* Lower RDS(on) x area vs previous generation

📥 Download Datasheet

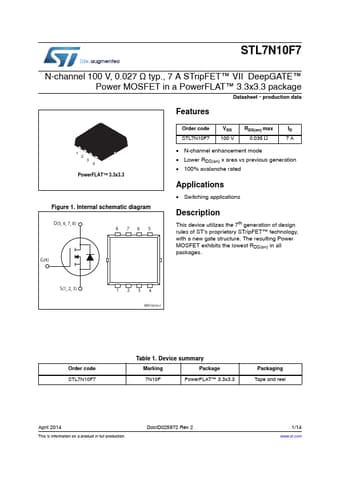

Preview of STL7N10F7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
