STL7N6F7

N-channel Power MOSFET

STL7N6F7 Features

* Order code STL7N6F7 VDS 60 V RDS(on) max 0.025 Ω ID 7A

* Among the lowest RDS(on) on the market

* Excellent figure of merit (FoM)

* Low Crss/Ciss ratio for EMI immunity

* High avalanche ruggedness Applications

* Switching applications Description This N-channel Power MOSFET u

STL7N6F7 General Description

This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching. 6(D) 5(D) 4(S) Bottom view AM11269v1 Order code STL7N6.

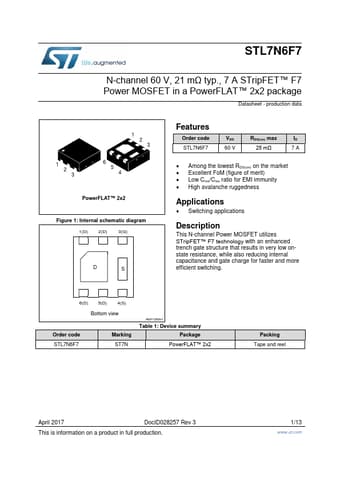

STL7N6F7 Datasheet (536.00 KB)

Preview of STL7N6F7 PDF

Datasheet Details

Part number:

STL7N6F7

Manufacturer:

STMicroelectronics ↗

File Size:

536.00 KB

Description:

N-channel power mosfet.
STL7N6F7 N-channel 60 V, 0.021 Ω typ., 7 A STripFET™ F7 Power MOSFET in a PowerFLAT™ 2x2 package Datasheet - preliminary data 1 2 3 1 2 3 6 5 4 Po.
