STL7NM60N

N-channel Power MOSFET

STL7NM60N Features

* Order code STL7NM60N VDSS @ TJMAX 650 V RDS(on) max. < 0.90 Ω ID 5.8 A(1) 1. The value is rated according Rthj-case

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Application

* Switching applications Description This device is an N

STL7NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STL7NM60N Datasheet (387.87 KB)

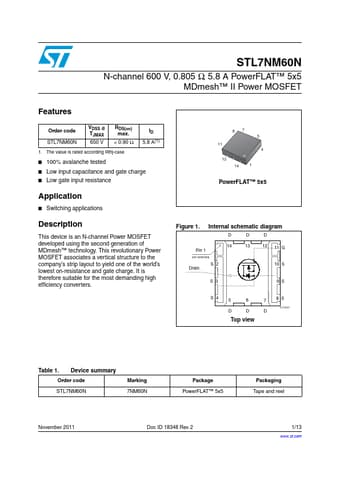

Preview of STL7NM60N PDF

Datasheet Details

Part number:

STL7NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

387.87 KB

Description:

N-channel power mosfet.
