STL7N80K5

N-channel Power MOSFET

STL7N80K5 Features

* Order code STL7N80K5 VDS 800 V RDS(on)max. 1.2 Ω ID 3.6 A

* Outstanding RDS(on)

* area

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener protected Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5

STL7N80K5 General Description

This N-channel Zener-protected Power MOSFET is designed using ST's revolutionary avalancherugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications which req.

STL7N80K5 Datasheet (753.75 KB)

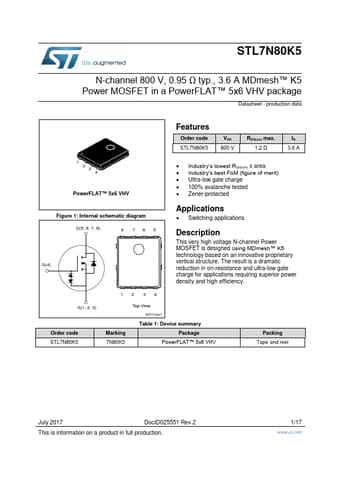

Preview of STL7N80K5 PDF

Datasheet Details

Part number:

STL7N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

753.75 KB

Description:

N-channel power mosfet.
STL7N80K5 N-channel 800 V, 0.95 Ω typ., 3.6 A Zener-protected SuperMESH™ 5 Power MOSFET in a PowerFLAT™ 5x6 VHV package Datasheet

* productio.
