STL7N6LF3

N-channel Power MOSFET

STMicroelectronics

STL7N6LF3 Features

* 1 2 3 4 PowerFLAT™5x6 Order code STL7N6LF3 VDS 60 V RDS(on) max 43 mΩ ID 6.5 A

* Designed for automotive applications and AEC-Q101 qualified

* Logic level VGS(th)

* 175 °C junction temperature

* 100% avalanche rated

* Wettable flank package Figure 1. In

STL7N6LF3 General Description

This device is an N-channel Power MOSFET developed using STripFET™ F3 technology. It is designed to minimize on-resistance and gate charge to provide superior switching performance. S(1, 2, 3) 12 34 Top View AM15540v2 Order code STL7N6LF3 Table 1. Device summary Marking Packages 7N6LF3 Power.

STL7N6LF3 Datasheet (833.38 KB)

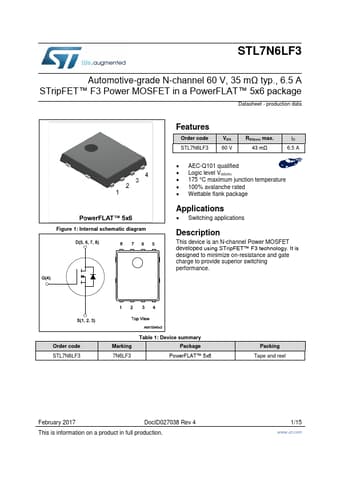

STL7N6LF3 Datasheet Preview — Preview of STL7N6LF3 PDF

Datasheet Details

Part number:

STL7N6LF3

Manufacturer:

STMicroelectronics ↗

File Size:

833.38 KB

Description:

N-channel power mosfet.
STL7N6LF3 Automotive-grade N-channel 60 V, 35 mΩ typ., 6.5 A STripFET™ F3 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet

* production dat.
