STL8P4LLF6

P-CHANNEL POWER MOSFET

STMicroelectronics

STL8P4LLF6 Features

* Order code VDS RDS(on) max. ID PTOT STL8P4LLF6 40 V 0.0205 Ω 8 A 2.9 W

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss Applications

* Switching applications Description This device is a P-channel Pow

STL8P4LLF6 General Description

This device is a P-channel Power MOSFET developed using the STripFET™ F6 technology, with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages. For the P-channel Power MOSFET, current polarity of voltages and current have to be reversed. Order code STL8P.

STL8P4LLF6 Datasheet (266.49 KB)

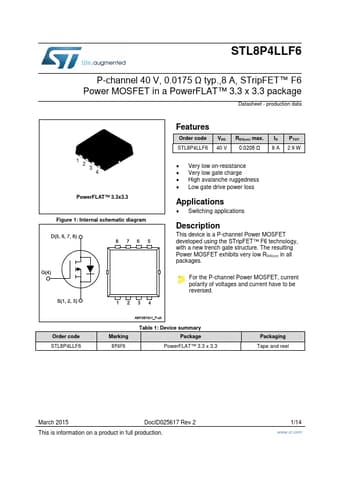

STL8P4LLF6 Datasheet Preview — Preview of STL8P4LLF6 PDF

Datasheet Details

Part number:

STL8P4LLF6

Manufacturer:

STMicroelectronics ↗

File Size:

266.49 KB

Description:

P-channel power mosfet.
STL8P4LLF6 P-channel 40 V, 0.0175 Ω typ.,8 A, STripFET™ F6 Power MOSFET in a PowerFLAT™ 3.3 x 3.3 package Datasheet - production data 1 2 3 4 PowerF.
