STL80N3LLH6 Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

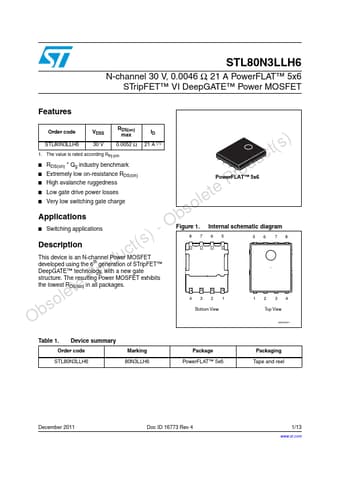

STL80N3LLH6 N-channel 30 V, 0.0042 Ω , 21 A PowerFLAT™(5x6) STripFET™ VI DeepGATE™ Power MOSFET Preliminary data .
This product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.

📥 Download Datasheet

Preview of STL80N3LLH6 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Type STL80N3LLH6 VDSS 30 V RDS(on) max 0.005 Ω ID 21 A (1) 1. The value is rated according Rthj-pcb
* RDS(on)
* Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive power losses Very low switching gate charge PowerFLAT™
